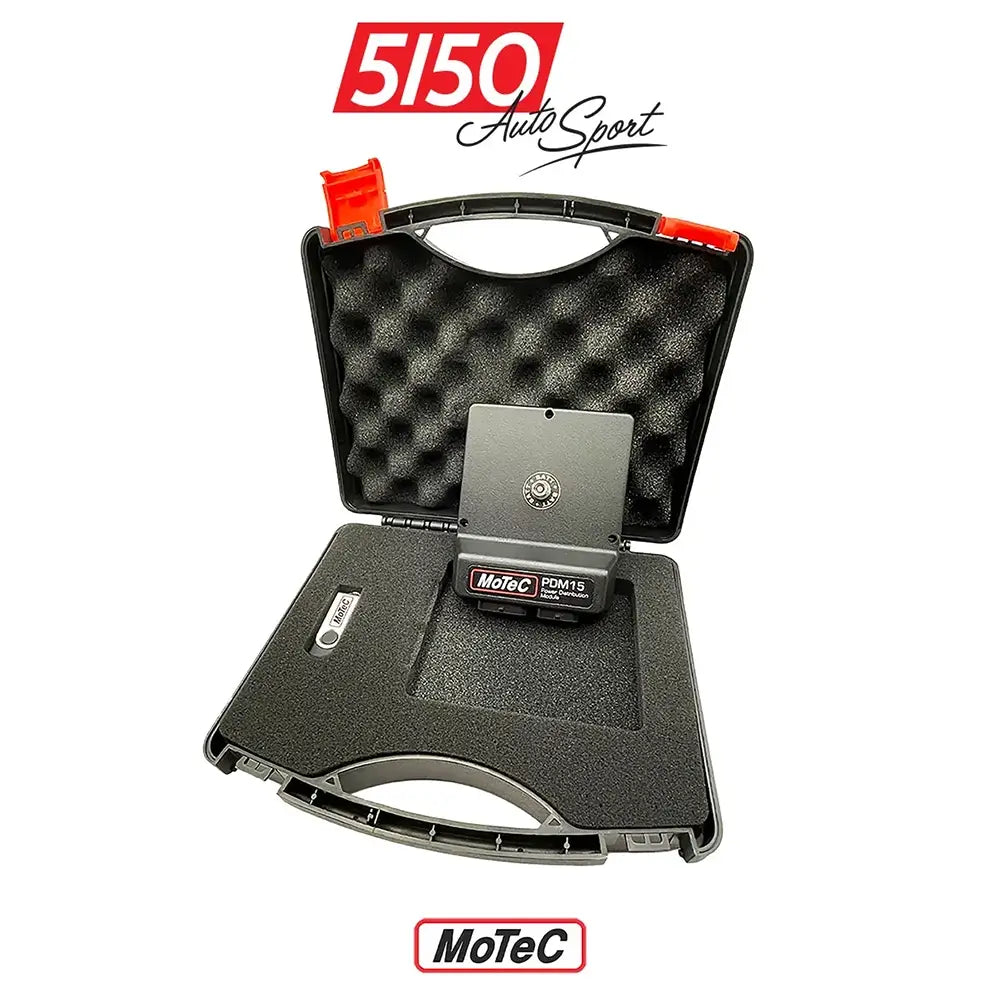

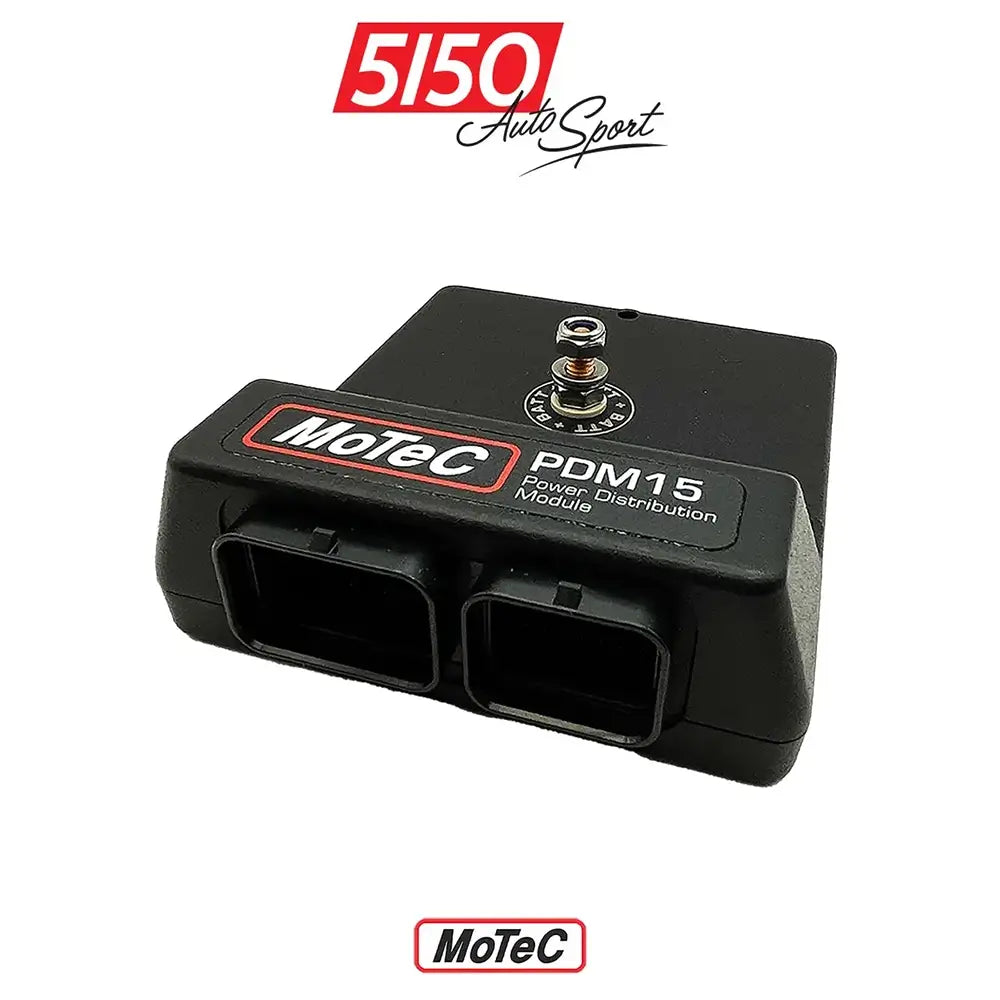

MoTeC’s new 15 output Power Distribution Module (PDM15) is designed to provide electronically switched power to the various electrical systems in the vehicle such as motors, lights and solenoids, and electronic devices such as ECUs and data acquisition systems.
The module replaces conventional relays, fuses and circuit breakers, simplifying wiring and reducing weight, while increasing reliability.
Outputs:
8 x 20 A outputs—20 A continuous, 115 A transient (typical)
7 x 8 A outputs—8 A continuous, 60 A transient (typical)
Inputs:
16 x Switch inputs
Communications:
1 x CAN
Diagnostic Information:
Output current and voltages
Input voltages
Error status
Connectors:
1 x 34 pin waterproof connector
1 x 26 pin waterproof connector
1 x M6 stud
Case size:
108 x 128 x 39 mm
Weight:
260 grams

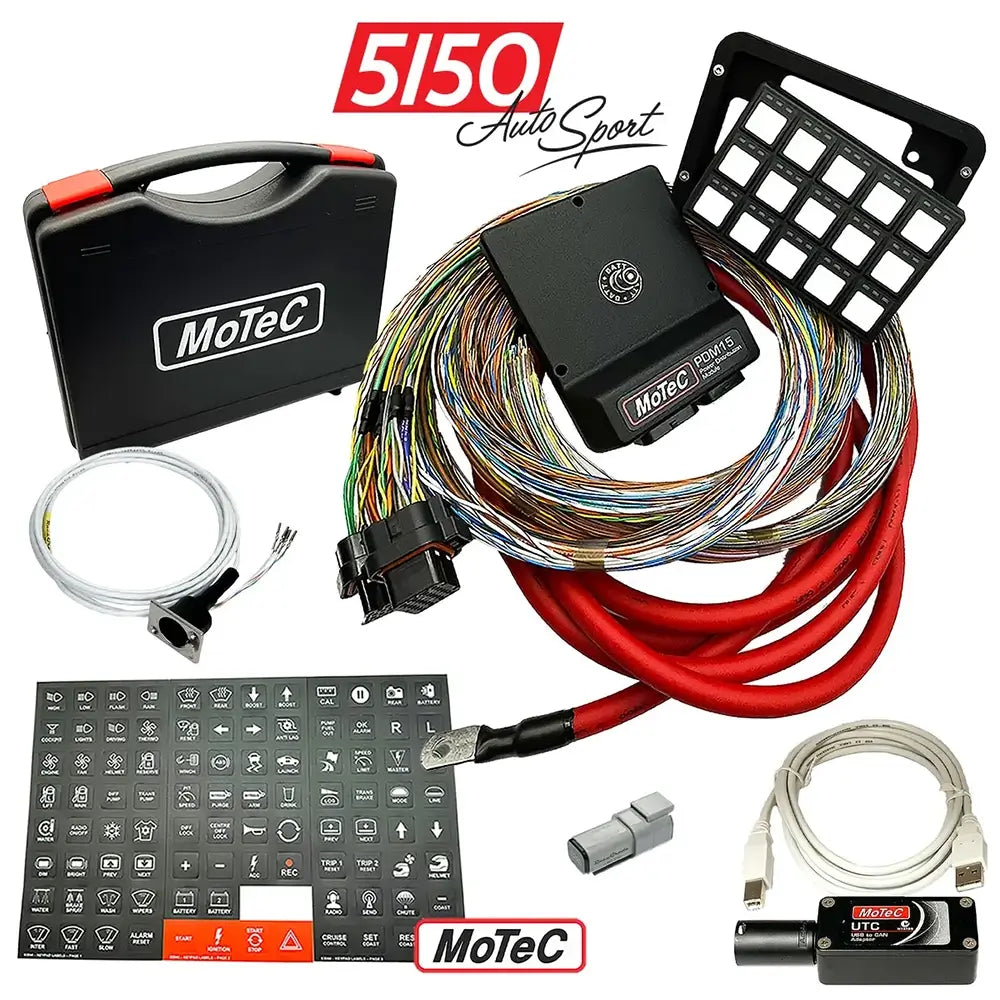

Kit Includes:

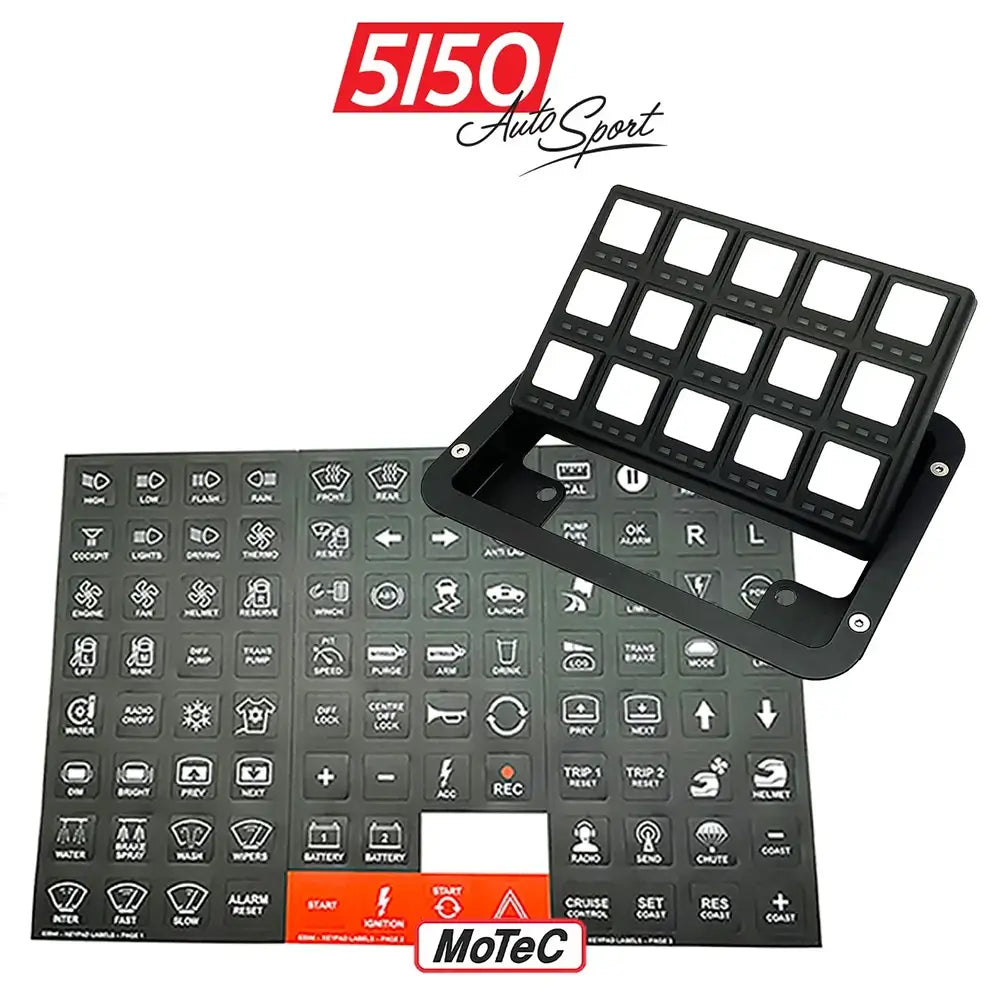

MoTeC 15 Position CAN Keypad
Flush Mount Bezel for CAN Keypad
3x Sheets Keypad Labels

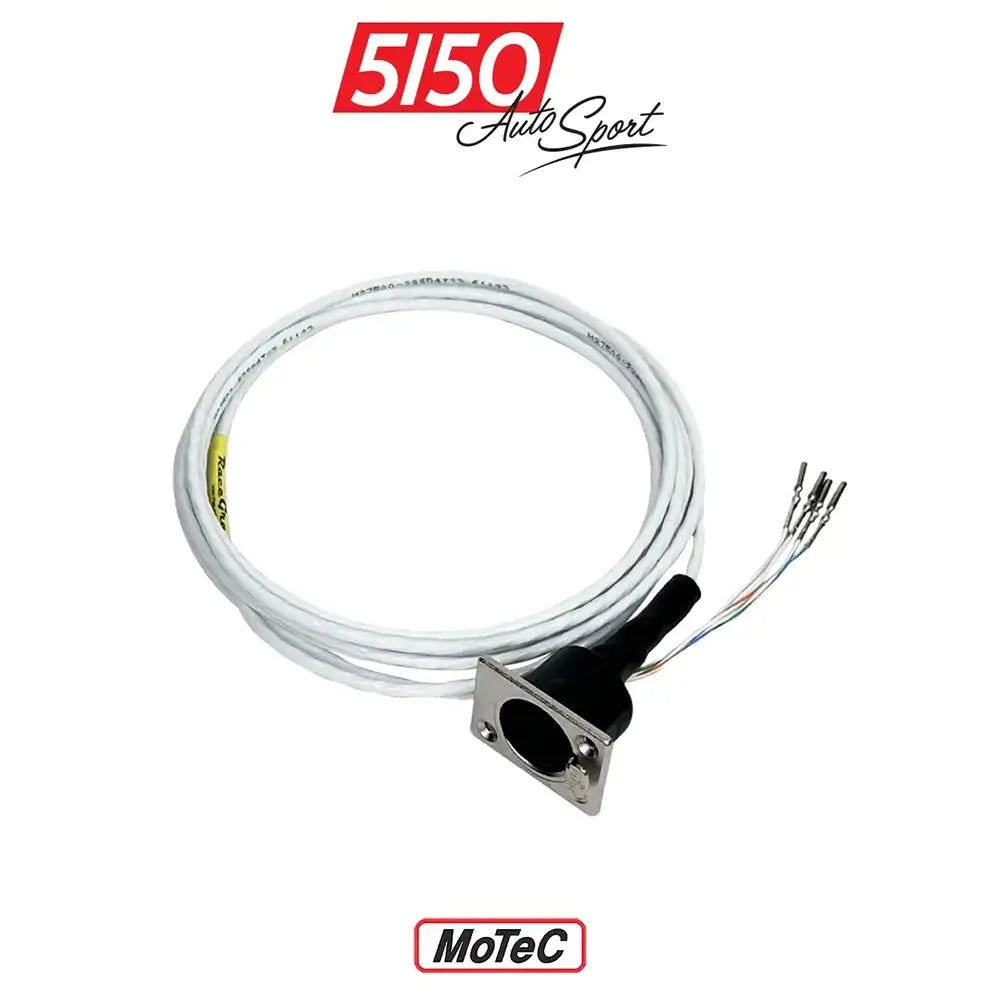

Can connector w/lock - Used with MoTec UTC connector

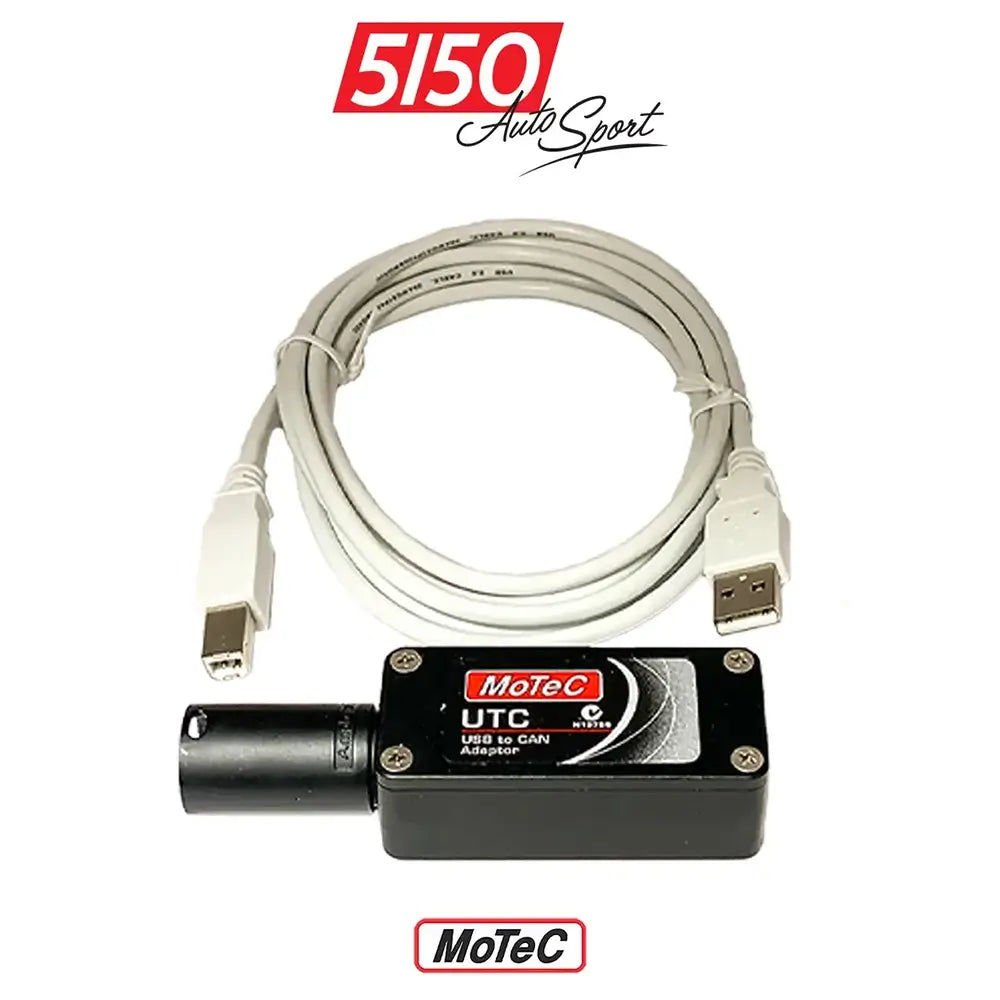

MoTeC UTC - USB to CAN adapter
USB A cable

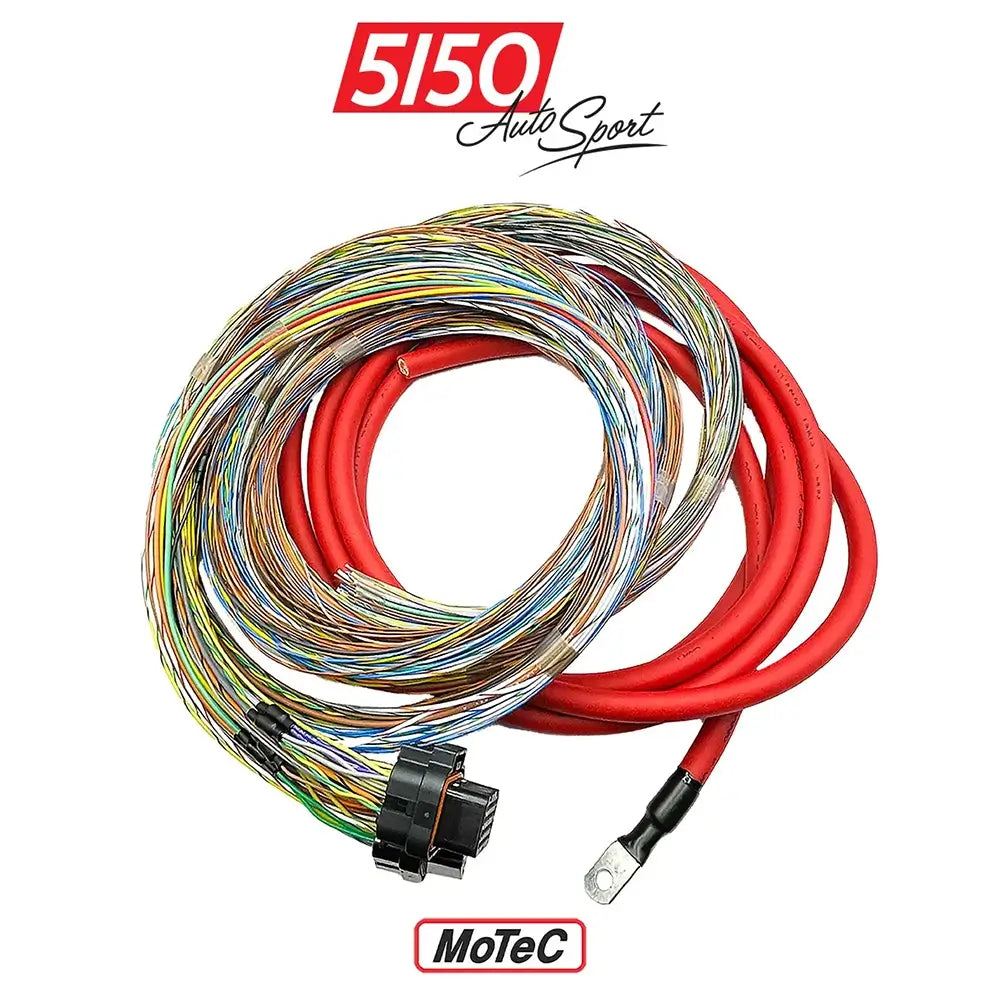

MoTeC 10' Unterminated Flying Lead Harness for PDM15/PDM30 made with Tefzel Wire.
