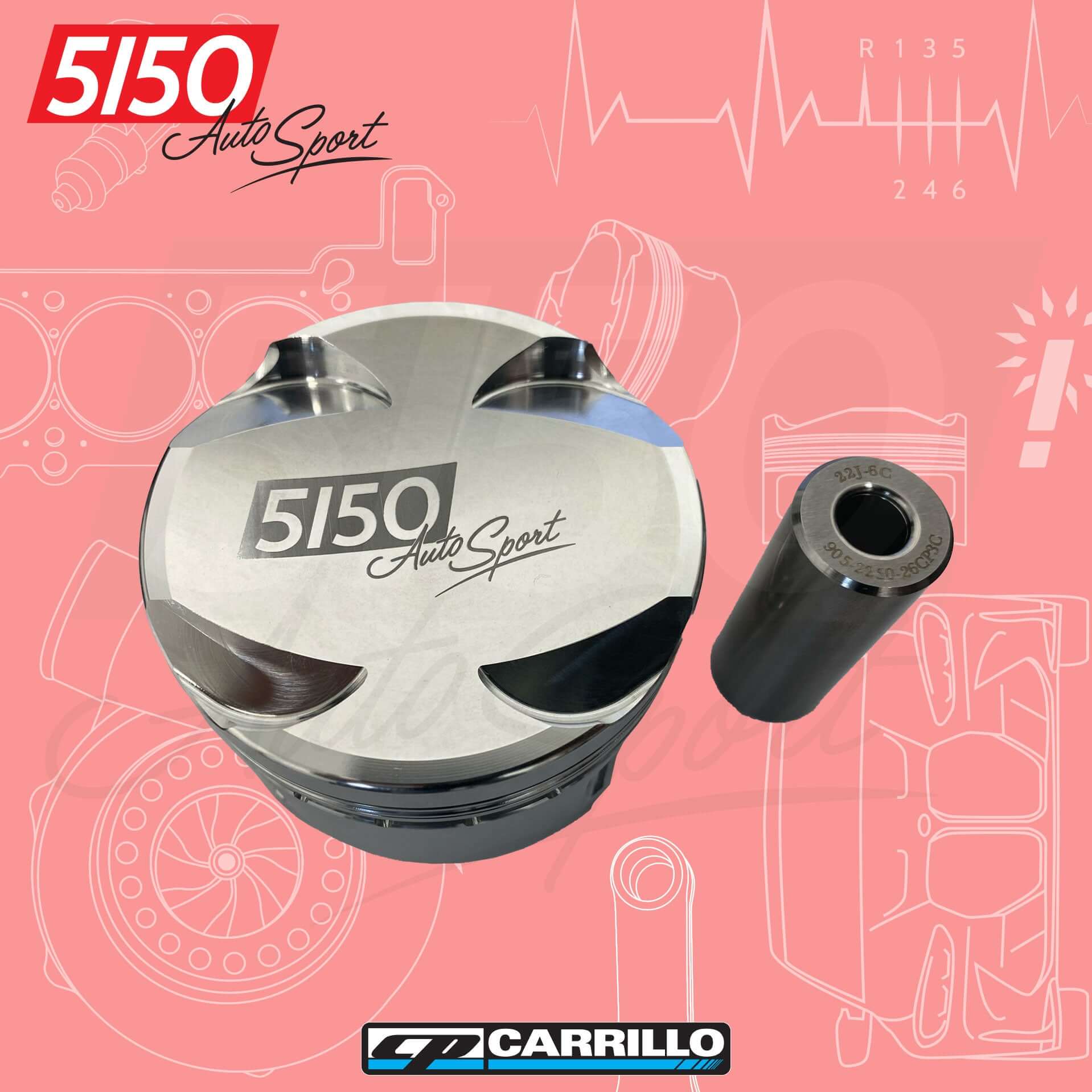

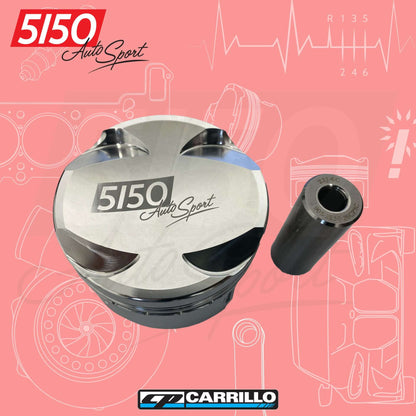

CP Forged Piston Set, BMW S58 Pro-Xtreme

BMW S58, G80/G82/G83, X3M, F97 X3M, F98 X4M, G87 M2

The S58 is an aluminum block with a spray-on iron coating on the cylinder walls. This allows the engine to have the strength and durability of a cast iron block, while still retaining the light weight and heat dissipation benefits of an aluminum block.

These pistons are a factory replacement and no modification will be needed such like; bore or hone.

These pistons are made by CP-Carrillo to 5150 Autosport specifications using HD forged high-strength aluminum, which allows them to withstand the higher cylinder pressures and temperatures generated by turbocharging.

2000HP Rating

If the cylinders aren't in a good shape, then sleeving will required.

Pro-Xtreme Piston Sets Include:

- Pistons
- PVD Rings (Install Guide Here)
- Pins
- Locks
- Spec Sheet

Please note, the Pro-Xtreme Piston is engineered to handle up to 2000HP, however, the Standard Wrist Pin can only handle 800-850HP. To exceed 850HP, it is a MUST to use Heavy Duty pins.

BMW S58 Applications:

2 Series

2023-Present     G87     M2

3 Series

2021-Present     G80     M3

4 Series

2021-Present     G82/G83     M4

X3 Series

2019-Present     F97     X3M

X4 Series

2019-Present     F98     X4M
