Rally Road Oil Distribution Gauge Block
Rally Road Oil Distribution Gauge Block
This is a handy and easy way to add aftermarket oil pressure sending units to your car.
A stainless steel banjo fitting attaches this machined block to oil pressure port on your oil filter housing. ย You can then attach your factory oil pressure sender to one of the M12 x 1.5 threaded ports. The nice thing about the banjo is that it allows you to rotate/clock the distribution block to the angle that best fits.
The gauge block also has an extra M12 x 1.5 port and a 1/8 npt port for additional options such as a turbo oil feed and aftermarket oil pressure senders.
Rally Roadย supplies bothย M12 x 1.5 and 1/8 npt plugs that can be removed when you are ready to add the sender. Twoย new 12mm copper sealing washers are included with this part.

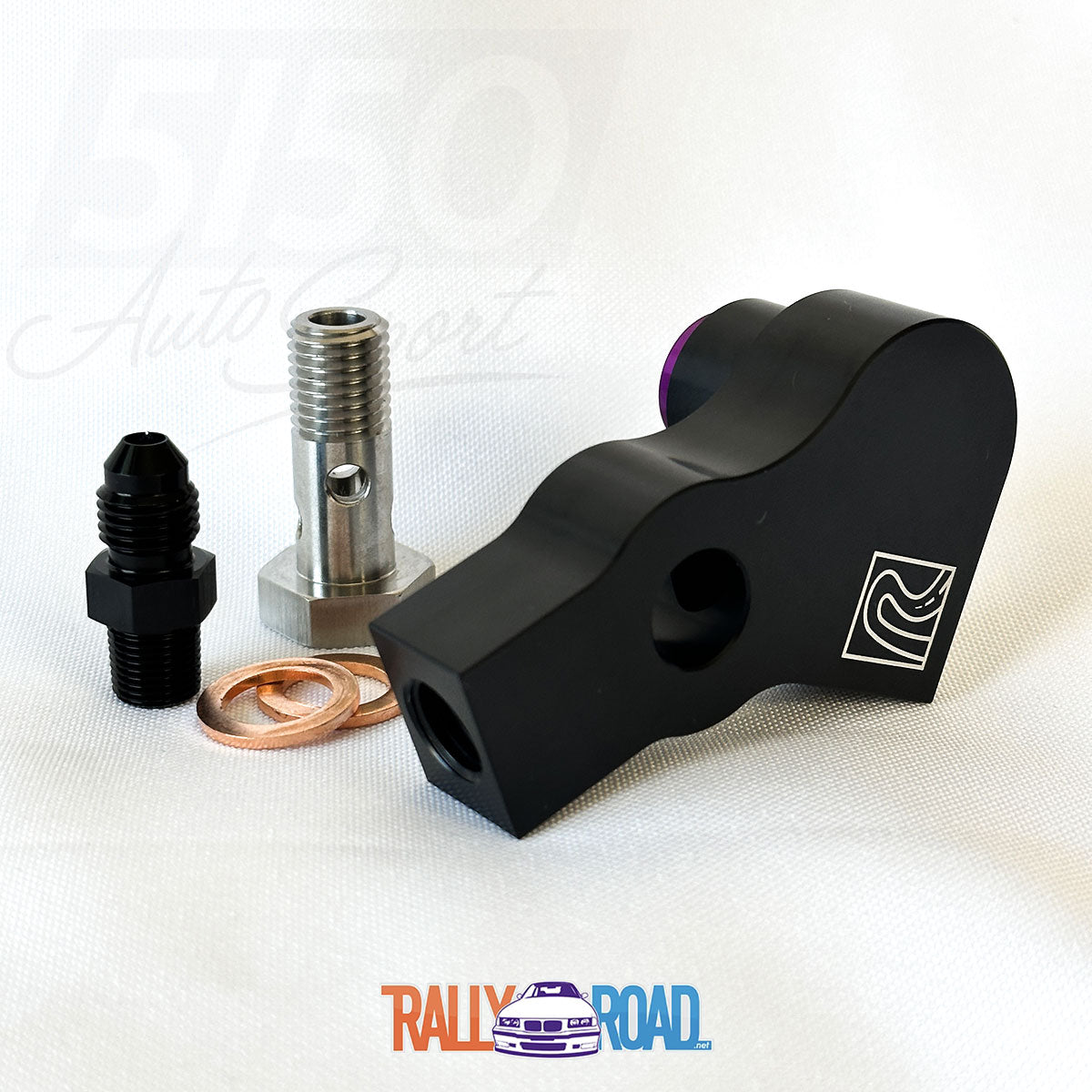

Contents:
(1) Oil Distribution Block anodized blue
(1) M12 x 1.5 Plug with sealing washer
(1) 4AN to 1/8npt Adapter Fitting
(1) Stainless 1/8 npt Plug*
*Installed only finger tight...you must use sealant and tighten
(1) Stainless Banjo Bolt
(2) Copper Sealing Washers
Applications:
Engines
M10
M30
M50
M52
S50
S52
M54
S54
3 Series
1984-1991 E30 318i
1984-1991ย E30 M3
1992-1991 E36 323is / 323iย / 323ic
1992-1991 E36ย 325isย / 325iย / 325ic
1992-1991 E36ย 328iย / 328isย / 328ic
1995-1999 E36 M3
1999-2005 E46 320i
1999-2005 E46ย 323Ci / 323i
1999-2005 E46ย 325Ciย / 325iย / 325xi
1999-2005 E46ย 328Ciย / 328i
1999-2005 E46 330Ciย / 330iย / 330xi
1999-2005 E46 M3
5 Series
1989-1995 E34 525i (M50)
1989-1995ย E34 535i
Z Series
1996-2002 Z3 2.5 / 2.8 / 3.0
1996-2002 Z3ย M
2003-2008 Z4 2.5i / 3.0i
2003-2008 Z4ย M
