Tilton Engineering 600-Series 3-Pedal Underfoot Assembly

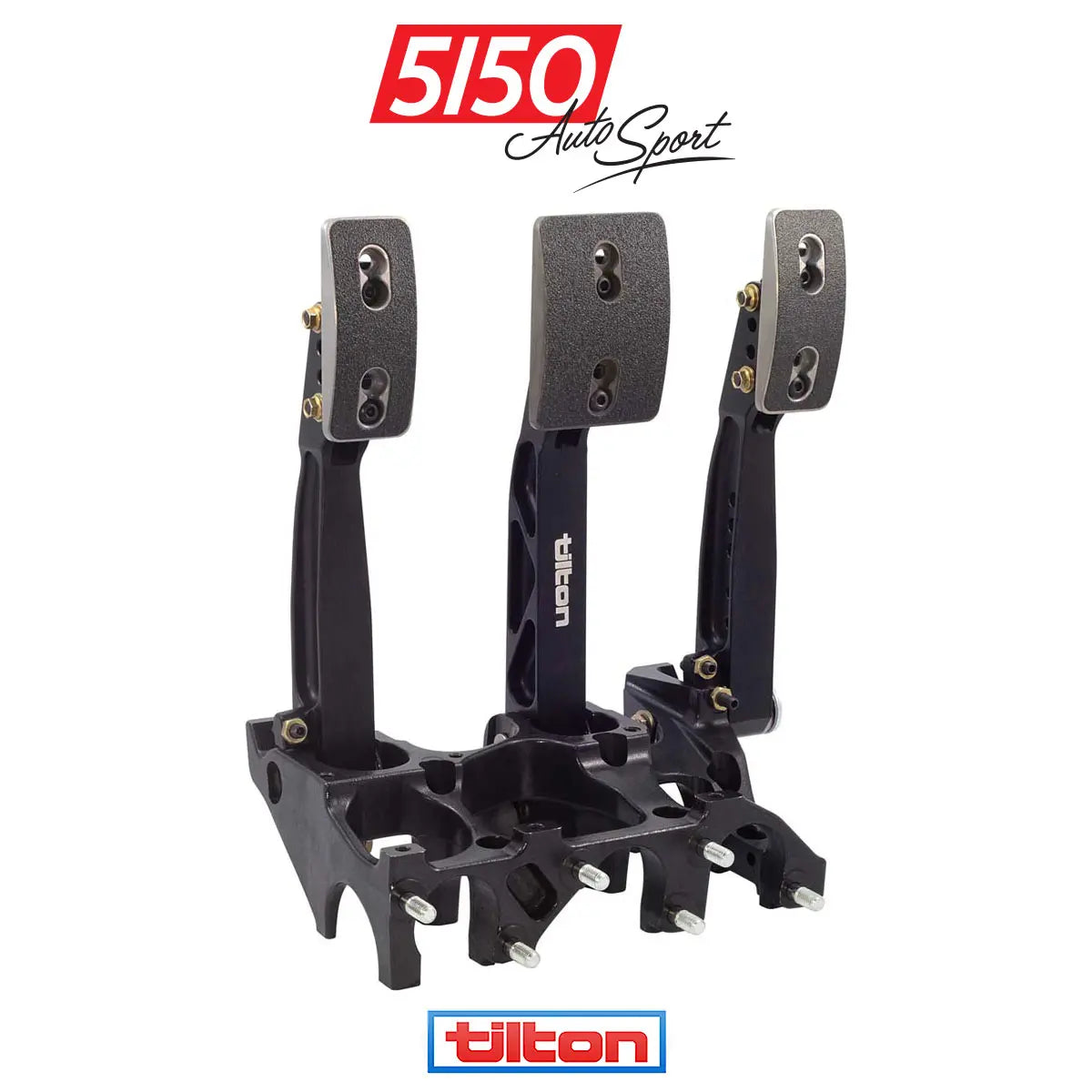

Tilton 600-Series 3-Pedal Underfoot Assembly

Designed for racers who demand more space and flexibility in the cockpit, Tilton’s 600-Series Underfoot Pedal Assembly features a rear-facing master cylinder layout. This unique design allows the pedals to be mounted farther forward than traditional floor-mount setups, giving drivers more seating options and improved ergonomics.

Built with a lightweight aluminum frame and forged aluminum pedals, the 600-Series offers maximum strength and reliability under extreme racing conditions. Pedal feel is enhanced by a large 7/16”-20 balance bar (P/N 72-260) that reduces flex and ensures consistent brake performance. Smooth pedal action is maintained with low-friction, oil-impregnated bronze bushings at each pivot point.

With adjustable pedal ratios from 5.4:1 to 6.9:1 and configurable foot pads that can be moved vertically, horizontally, or angled, this assembly offers precision tuning for a wide range of drivers and applications. It’s also compatible with custom false floors and heel rests for further cockpit customization.

Key Features:

• Rear-facing master cylinder layout for increased cockpit space
• Forged aluminum pedals with adjustable foot pads
• Lightweight, rigid aluminum frame supports custom false floors
• Large 7/16”-20 balance bar minimizes flex for solid pedal feel
• Adjustable pedal ratio from 5.4:1 to 6.9:1 for fine brake tuning
• Oil-impregnated bushings reduce friction at pivot points
• Compatible with Tilton 76-Series master cylinders
• Available in 2-pedal and 3-pedal configurations
