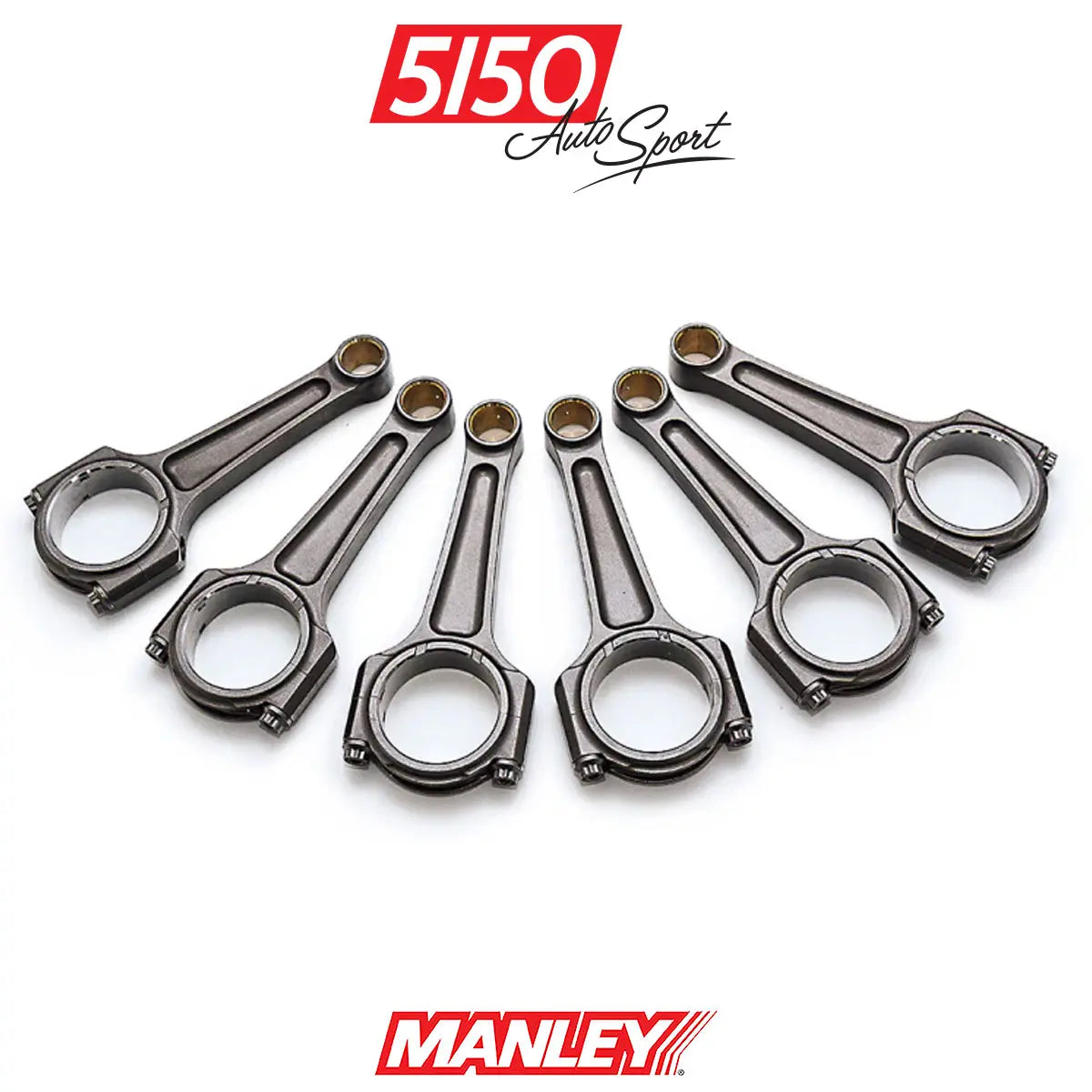

Manley Connecting Rod Set, Toyota 2JZ, Tri-Beam 625+

Designed specifically for the Toyota 2JZ engine, the Manley Performance I-Beam Turbo Tuff Connecting Rod Set comes equipped with 3/8" ARP 625+ custom age rod bolts included. Renowned as the industry standard for top-tier connecting rods, the Manley Pro Series Tri-BEAM rods boast a fully machined/billet style. These rods are forged from 4340 vacuum degassed material, well-regarded for its excellence in aerospace applications.

- 142mm length
- Roughly 645 grams

Each Manley rod undergoes meticulous machining at their factory located in Lakewood, NJ, adhering to the most stringent standards. The tapered I-Beam design, complemented by an undercut beam profile, ensures an optimal balance between strength and weight.

The bores maintain perfect roundness without any taper, and the ribbed pin end surround aids in preserving the pin bore's circularity. With cap corners featuring a generous radius and a shallow bolt spotface, the fatigue strength at the crank end is significantly improved.

Torque Specs:

55 ft/lbs or 0.0065"-0.0075" using ARP lubricant.

14402R6-6

Toyota 2JZ Applications:

Toyota 2JZ-GE (Naturally Aspirated)

1991-1997     Aristo 3.0    JZS147*
1997-2005     Aristo 3.0    JZS160*
     *Japanese Market Only

1996-2001     Chaser 3.0 Avante    JZX100
1996-2001     Cresta 3.0 Super Lucent    JZX100

1992-2003     Crown 3.0    JZS133 / JZS155 / JZS171

1992-2001     Mark II 3.0 Grande    JZX90 / JZX100

1991-2000     Soarer 3.0 GT    JZZ30

1993-2002     Supra SZ / SZ-R    JZA80

Lexus 2JZ-GE (Naturally Aspirated)

1993-1997     GS 300    JZS147
1997-2005     GS 300    JZS160

2001-2005     IS 300    XE10

1991-2000     SC 300    JZZ31

Toyota 2JZ-GTE (Twin-Turbocharged)

1991-1997     Aristo V    JZS147*
1997-2005     Aristo V300    JZS160*
     *Japanese Market Only

1993-2002     Supra RZ    JZA80

Toyota 2JZ-FSE (Naturally Aspirated with Direct Injection)*

1999-2003     Crown Royal Saloon 3.0   JZS171*
1998-2007     Progress NC300    JCG11*
2001-2007     Brevis 3.0    JCG10*
     *Japanese Market Only
